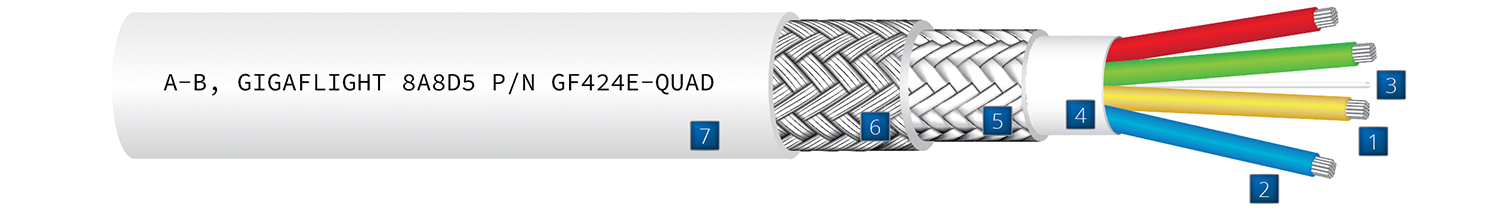

- Center Conductor: 24 AWG Stranded Silver-plated Copper
- Insulation: Foamed, High-temp Fluoropolymer

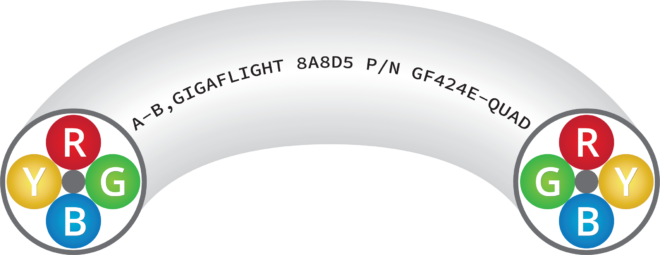

- Color Code: Pair 1: Red, Blue; Pair 2: Yellow, Green
- Filler: White Fluoropolymer
- Binder: PTFE Tape
- Inner Shield: Tin-plated Copper Strip Braid
- Outer Shield: 38 AWG Tin-plated Copper Round Braid
- Jacket: White, Laser-markable Tefzel
GF424E-QUAD 100 BASE-T QUADRAX ETHERNET CABLE
GIVING YOU OPTIONS
The GF424E-QUAD is designed to meet the ARINC 664, 100Base-T physical layer for Ethernet. While being lighter and having an overall smaller outer diameter, the GF424E-QUAD exceeds Category 5e requirements. This cable is a suitable alternative to Carlisle’s NF24Q100-01 and MX100Q-24, as well as PIC’s E51424. Any size 8 Quadrax contact designed for NF24Q100-01, MX100Q-24 or E51424 will also work with the GF424E-QUAD. GIGAFLIGHT provides tested Quadrax assemblies per the customers specification and, in many cases, built with Quadrax contacts supplied by the customer.
The GF424E-QUAD is available in different color jackets to accommodate your application. Please contact GIGAFLIGHT for details and availability.
Environmental & Mechanical Properties
Electrical Properties
Attenuation (+25°C)
Additional Jacket Colors for Special Applications
The jacket color depicted in the cable image above is a stock item. If your project requires a color for a specific application, GIGAFLIGHT can do that. Please Contact us for availability.
View Color & Application TableAll values nominal unless noted.
GigaFlight’s aerospace cables are designed to be resistant to Skydrol, will meet requirements of RoHS & REACH, & meets Federal Aviation Regulations 14 CFR part 25.869 (a)(4), Appendix F part I (a)(3).
Compare GIGAFLIGHT Cables
*Identical alternative: GIGAFLIGHT’s product is identical to another as far as materials, physical, and electrical characteristics.
**Suitable alternative: GIGAFLIGHT’s product is comparable with slight variances. Please contact us to discuss your application.
