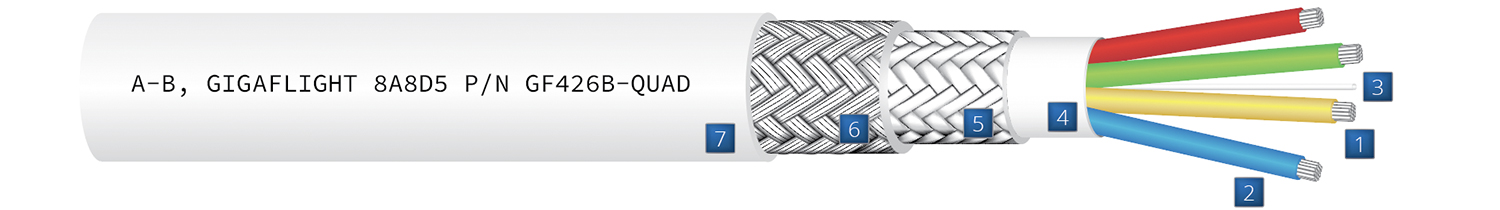

- Center Conductor: 26 AWG Stranded, Silver-plated HSCA
- Insulation: Solid, High-temp Fluoropolymer
- Color Code: Pair 1: Red, Blue; Pair 2: Yellow, Green
- Filler: Fluoropolymer
- Binder: PTFE Tape
- Inner Shield: Tin-plated Copper Strip Braid
- Outer Shield: 38 AWG Tin-plated Copper Round Braid
- Jacket: White, Laser-markable Tefzel
GF426B-QUAD 10/100BASE-T QUADRAX ETHERNET CABLE
GIVING YOU OPTIONS
The GF426B-QUAD is designed as a 100 Ohm Quadrax Ethernet cable, 10/100Base-T that has a small outer diameter and is lightweight. This cable is a suitable alternative to PIC’s E51426, as well as Carlisle’s NF26Q100-01 and MX100Q-26. Any size 8 Quadrax contact designed for NF26Q100-01, MX100Q-26 or E51426 will also work with the GF426B-QUAD. GIGAFLIGHT provides tested Quadrax assemblies per the customer’s specification.
The GF426B-QUAD is available in different color jackets to accommodate your application. Please contact GIGAFLIGHT for details and availability.
Environmental & Mechanical Properties
Electrical Properties
Attenuation (+25°C)
Additional Jacket Colors for Special Applications
The jacket color depicted in the cable image above is a stock item. If your project requires a color for a specific application, GIGAFLIGHT can do that. Please Contact us for availability.
View Color & Application TableAll values nominal unless noted.
GigaFlight’s aerospace cables are designed to be resistant to Skydrol, will meet requirements of RoHS & REACH, & meets Federal Aviation Regulations 14 CFR part 25.869 (a)(4), Appendix F part I (a)(3).
Compare GIGAFLIGHT Cables
*Identical alternative: GIGAFLIGHT’s product is identical to another as far as materials, physical, and electrical characteristics.
**Suitable alternative: GIGAFLIGHT’s product is comparable with slight variances. Please contact us to discuss your application.
