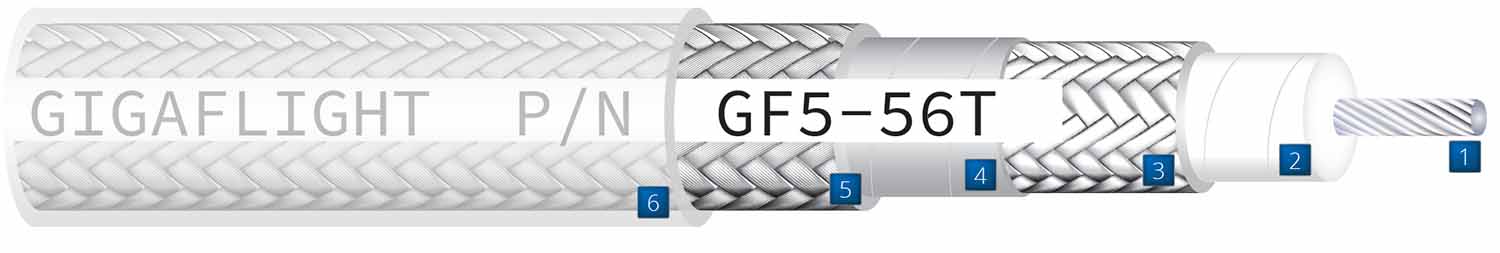

- Center Conductor: 12 AWG Stranded, Silver-plated Copper
- Dielectric: Low-density PTFE
- Inner Shield: Silver-plated Copper Flat Strip Braid
- Interlayer: Composite Foil
- Outer Shield: 36 AWG Silver-plated Copper Braid
- Jacket: Clear FEP
GF5-56T LOW-LOSS HIGH-PERFORMANCE COAX
GIVING YOU OPTIONS
GIGAFLIGHT’s 50Ω coaxial cable, GF5-56T, is designed as a drop-in replacement to Carlisle 311201 and PIC S55122. Built with identical materials and matching electricals, GIGAFLIGHT has simplified your design in approvals. The connectors paired with this low-loss 50 ohm coax cable are identical to the XXX122 series avionics connectors, which means electrical characteristics, strip dimensions and tooling are the same.
Contact/RFQEnvironmental & Mechanical Properties
Electrical Properties
Attenuation (+25°C)
Additional Jacket Colors for Special Applications
The jacket color depicted in the cable image above is a stock item. If your project requires a color for a specific application, GIGAFLIGHT can do that. Please Contact us for availability.
View Color & Application TableAll values nominal unless noted.
All tests performed in accordance with MIL-DTL-17
GigaFlight’s aerospace cables are designed to be resistant to Skydrol, will meet requirements of RoHS & REACH, & meets Federal Aviation Regulations 14 CFR part 25.869 (a)(4), Appendix F part I (a)(3).
GF5-56T Connectors
Compare GIGAFLIGHT Cables
*Identical alternative: GIGAFLIGHT’s product is identical to another as far as materials, physical, and electrical characteristics.
**Suitable alternative: GIGAFLIGHT’s product is comparable with slight variances. Please contact us to discuss your application.
